Stainless Steel Polish Horizontal Award Flagpole Raising System Horizontal Medal Award Flag

RICJ Horizontal Banner Flagpole Technical Parameter

I. System overview:

One of the signs of modern stadiums is that they can efficiently manage and control the course of events by using advanced computer technology, network technology and control technology according to the characteristics of sports competitions. In order to meet the needs of the construction of modern venues, the construction of the intelligent system of the stadium includes such as large-screen display system, venue sound reinforcement system, venue lighting control system, timing score and on-site score processing system, on-site image acquisition and playback system, TV broadcast Professional systems closely related to the process of sports competitions, such as on-site comment systems, master timing clock systems, and flag raising control systems.

With the vigorous development of sports, the need for technological and digital development of stadium construction, as well as the needs of international competitions after the Olympic Games, the award ceremony is more solemn and indispensable, and the flag raising ceremony is the climax of major events. In this context, the automatic flag raising system is particularly important.

In order to meet the needs of sports events, an automatic flag-raising system specially customized for stadiums has been launched. The system integrates modern computer, network and control technologies to realize the function of synchronizing the time of flag raising with the playing time of songs (national anthem, meeting anthem, etc.). The system is mainly used in the awards of large-scale competitions and the flag-raising ceremonies on other occasions, and is suitable for modern stadiums and other places with such needs.

II. The overall structure and characteristics of the system

1. Synchronous lifting and lowering of multiple flags

2. Can support a variety of music formats

3. The flag-raising time is synchronized with the national anthem playback time (the flag-raising speed can be adjusted according to the length of different national anthems to achieve the effect of synchronization to the top)

4. Easy and fast flag replacement

5. The flagpole adopts aluminum alloy telescopic tube, which is easy to use, beautiful and corrosion-resistant

6. With upper and lower limit switches, the crossbar will automatically stop when it reaches the top and bottom to ensure the reliability and safety of the system

7. It has the function of power-off brake to prevent the power-off boom from falling, and it is safe

8. The control method is remote control operation and button operation, and a manual lifting device is reserved at the same time, which can be manually operated in the event of an emergency power failure.

III. Main Technical Parameters of the System and System Components

Remark: Our quotation is premised on these:

1. 2 Sets of Horizontal Poles Rise and Fall with Same Speed Every Time. (such as the flagpole rise 10 times, all of the 10 times are the same speed time)
2. Our quotation is included only following device in the sheet, other computer, sound, amplifier etc. Is on client’s side.

A. The main technical parameters of the flag raising system are as follows:

●Input voltage: 220V

●Power: 750w

●Motor running frequency: 50Hz~60Hz

●Flag raising time: 30-120 seconds

●Maximum average hanging weight: 30Kg

●Flag pole height: 6m-30m Flag raising protection

●Flag down protection: Level 1 limit

●Slip protection: mechanical locking

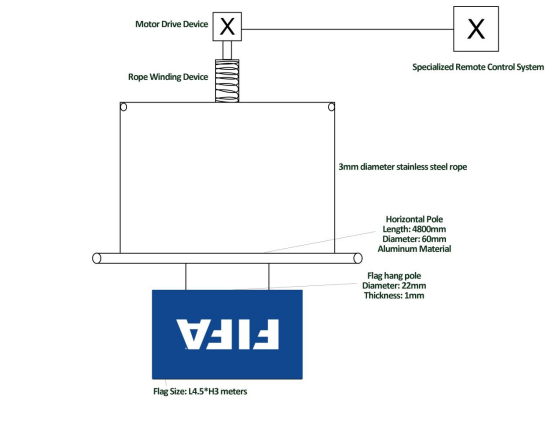

1. The main components of the flag raising system are as follows:
