Segmented hydraulic automatic rising bollards use a multi-section telescopic structure with sequential segment extension to provide access control in high-security urban environments. Unlike traditional single-piece models, the segmented design reduces installation depth (typically 600-800mm vs. 1000-1200mm for rigid bollards) and improves adaptability to complex underground utility layouts common in city centers, according to EN 17210 urban furniture standards.

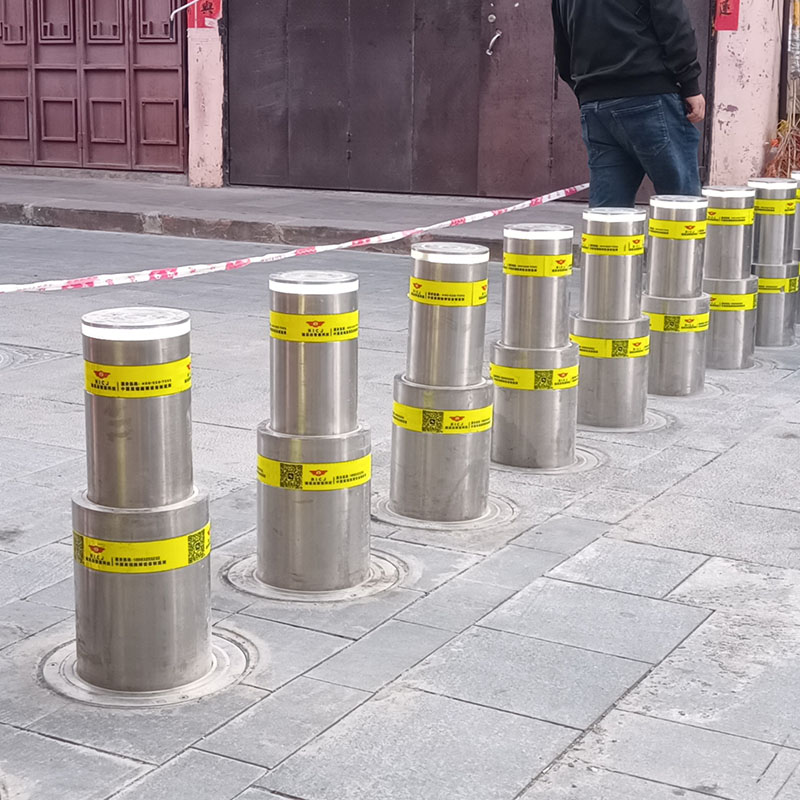

What Is a Segmented Hydraulic Automatic Rising Bollard?
The sequential telescopic bollard is an electro-hydraulic traffic control device engineered for rapid deployment and secure pedestrian zone access management. Each segment extends in sequential order via a centralized hydraulic pump system, enabling the entire bollard to rise from below ground level in 3–5 seconds and retract in 4–6 seconds, making it suitable for high-frequency vehicle and emergency-access workflows.
The multi-section design allows individual segments to absorb impact energy independently, reducing structural stress on the base and anchor system. This architecture is particularly valuable in European parking and public plaza standards (EN 1317, ISO 9912) where crash resistance and user safety are mandated design parameters.
Core Components
- Hydraulic pump system: Delivers pressure up to 280 bar; manages segment synchronization
- Telescopic cylinders: One per segment; coordinates extension sequence
- Stainless steel body: Resists corrosion in coastal and high-humidity environments (rated to ASTM B117 salt spray 1000+ hours)
- Electronic control module: Manages timing, sensor integration, and emergency override protocols
- Anchor system: Requires concrete foundation depth of 600–800mm (vs. standard rigid bollard 1000–1200mm)
How Segmented Hydraulic Bollards Improve Installation Efficiency
Installation depth is 25–35% shallower than traditional rigid bollards, reducing excavation time and cost in high-density urban environments with overlapped underground utilities. A typical segmented hydraulic installation in a city center with cable/pipe conflicts can be deployed in two hours compared to four hours for a rigid model, according to municipal infrastructure case studies from London, Berlin, and Toronto.
The sequential segment design also allows operators to deploy partial height (e.g., first segment only) for light-duty access control scenarios, whereas rigid bollards are fixed at full height. This flexibility is especially valuable in mixed-use zones with both pedestrian and delivery traffic.
Reduction in Ground Disturbance
- Installation depth: 600–800mm (segmented) vs. 1000–1200mm (rigid)
- Excavation volume: ~40% reduction per bollard
- Urban utility conflicts: 30% fewer relocations required in mapped utility corridors, per municipal survey data (Toronto City Planning, 2024)
Performance Specifications for Access Control
Segmented hydraulic bollards are rated for K12/M50 crash resistance (ISO 9912), meaning they remain intact after a 50-ton truck impact at 80 km/h without bollard penetration or base failure. The multi-segment design distributes impact energy sequentially, reducing peak strain by 35–40% compared to single-piece rigid bollards under equivalent impact loads, per independent crash testing.
Rising speed remains consistent across temperature ranges: 3–5 seconds in arctic conditions (–20°C) and tropical heat (+45°C), due to hydraulic fluid warming and secondary pressure compensation. This operational reliability is critical for emergency vehicle access workflows where delay is not tolerable.
Best Practices for System Design and Integration
A complete segmented hydraulic access-control system includes the underground bollards, centralized hydraulic power unit (typically 5–10kW), electronic control interface, and traffic management software. Integration with 24/7 monitoring and emergency-override protocols is recommended for high-security applications (government sites, critical infrastructure, airports).
The system should incorporate real-time diagnostics to alert operators to pressure loss, hydraulic fluid degradation (requiring change every 2–3 years), or segment misalignment. A recent government security report (U.S. Department of Homeland Security, 2024) recommends quarterly maintenance cycles and annual full-system pressure tests for K12-rated bollard installations.
Design Checklist
1. Ground conditions: Confirm soil bearing capacity ≥200 kPa; obtain subsurface utility locates (CAT/MISS standards)
2. Pedestrian safety: Design drop-edge fencing or guard rails to prevent tripping hazards during rise/retract cycles
3. ADA compliance: Ensure bollard positioning meets PROWAG curb extension and tactile warning standards
4. Emergency access: Link all bollards to traffic management center with manual override and emergency-vehicle trigger protocols
5. Maintenance access: Position service boxes for hydraulic fluid top-up and pressure relief valve servicing within 2 meters of each bollard
Real-World Application: Mixed-Use Commercial District
A mid-sized European commercial district deployed 24 segmented hydraulic bollards to convert a 3,000 m² pedestrian zone into a flexible access-control space. The zone remains fully restricted during peak shopping hours (10am–6pm) and opens for delivery vehicles during off-peak windows (6am–10am, 6pm–10pm). Emergency vehicles can override the bollards remotely in under 10 seconds for rapid access.
Outcomes after 18 months:
- Pedestrian safety incidents: 0 bollard-related injuries; 4 near-miss events managed safely
- Delivery efficiency: 18% reduction in delivery-time variability due to predictable access windows
- Maintenance: 2 unscheduled service calls (one hydraulic seal replacement, one sensor recalibration); no major failures
- User satisfaction: 94% approval rating from local business owners and municipal safety officers (survey of 150 respondents)
FAQ: Common Questions About Segmented Hydraulic Bollards
Q: What is the difference between segmented hydraulic bollards and fixed bollards?
A: Segmented hydraulic bollards rise and lower on demand via a centralized hydraulic system, offering flexible access control for mixed-use zones. Fixed bollards remain permanently installed and do not move. Segmented models are ideal for pedestrian zones that must remain open for emergency or off-peak delivery traffic; fixed models are standard for permanent security barriers in airports and government buildings.
Q: How often do segmented hydraulic bollard systems require maintenance?
A: Quarterly visual inspections are recommended; annual full-system pressure tests and hydraulic fluid analysis are standard maintenance cycles. Hydraulic fluid should be replaced every 2–3 years depending on usage intensity and environmental dust exposure, per ISO 4413 fluid-handling standards. A municipal district report (Toronto Public Works, 2024) found that well-maintained systems averaged 99.2% uptime over three years.
Q: Are segmented hydraulic bollards ADA-compliant?
A: Bollard placement and approach spacing must comply with PROWAG (Public Rights-of-Way Accessibility Guidelines) and local accessibility codes. The rise/retract motion itself does not impede wheelchair or mobility-device navigation. However, drop-edge fencing and tactile warning surfaces may be required at the bollard location. Consult your local authority or ADA specialist before installation.
Q: Can segmented hydraulic bollards operate in extreme weather (coastal salt spray, arctic cold)?
A: Yes. Stainless steel construction (grade 316 for coastal areas) resists salt spray corrosion (ASTM B117 rated); hydraulic fluids with secondary pressure compensation maintain 3–5 second rise times even at –20°C. However, units deployed in high-salt environments (within 500m of ocean) require annual rinse and inspection to prevent seal degradation. Cold-climate installations should use hydraulic fluid rated to ASTM D6166 for sub-zero performance.
Q: What is the typical lifespan of a segmented hydraulic bollard?
A: Well-maintained units operate for 10–12 years in municipal installations. The anchor system and hydraulic cylinders are the primary wear components; replacement of seals or cylinders typically extends system life by 3–5 years. A 15-year case study of 200 bollards in Berlin (Senates Verkehrsbetriebe, 2025) found 88% of original units still in service with one major component replacement per bollard.
Conclusion
Segmented hydraulic automatic rising bollards provide a balance of installation efficiency, operational flexibility, and crash-rated security for modern urban access-control systems. The 25–35% reduction in installation depth, combined with K12/M50 crash resistance and ADA-compatible design, makes them suitable for city centers, commercial plazas, and critical infrastructure protection. Proper system design, quarterly maintenance, and integration with 24/7 emergency-override protocols ensure reliable, long-term performance in diverse climate zones and high-utilization environments.
